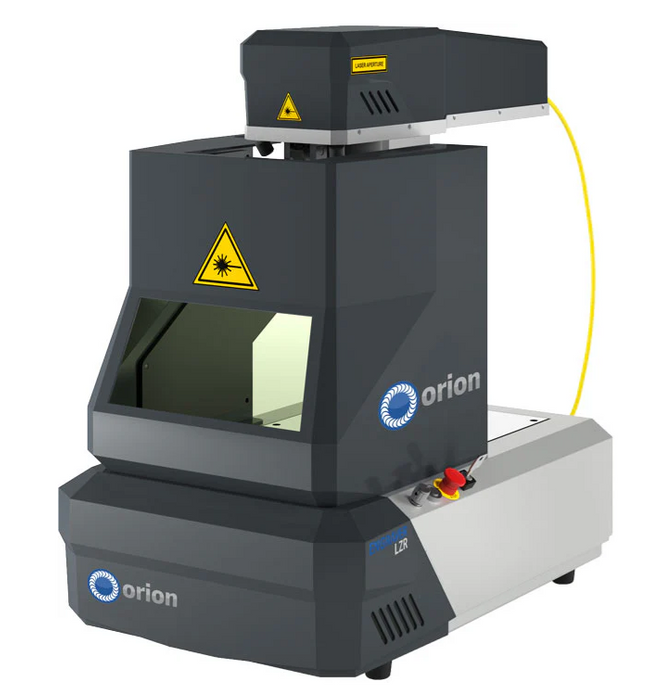

Orion Nano 20 Watt Laser Engraver


The perfect engraving machine for all your needs.

The Orion Nano Engravers were developed by incorporating the research and innovations of the Engraver series but with a goal of offering a high quality laser at a more affordable price.

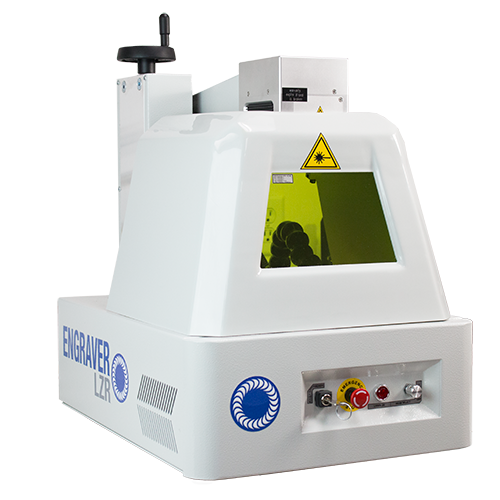

Similar to the Engraver series, the Nano products are also built using a ytterbium-doped fiber optics and offer the same low environmental impact and low maintenance (up to 50,000 working hours).

They can be used on any metal to engrave text, photographs, logos, and markings. The maximum marking area ranges from 65x65mm to 180x180mm depending on the lens. The standard lens offers a 110x110mm working area with a resolution of 20?m.

The engraving machine is small, with a fully accessible working chamber thanks to the absence of closures and hatches. There are two available models with either 10W or 20W of maximum output power. Maneuvering pieces and configuring setups is very fast and easy, however, unlike the Engraver series, the z-axis is not motor driven and must be adjusted manually. To help position the z-axis appropriately, the engraving machine has an innovative and intuitive focusing system with overlapping laser pointers. The engraver can also be equipped with a video camera for optimization of the processing, and for possible remote assistance.

Software is included with these engravers. The software is capable of importing file types from commonly-used computer design programs such as svg, dxf, bmp, plt, jpg, dwg, and others. The software makes it easy to perform any job from engraving an image, engraving text on the inside of a ring, engraving a custom design on a bangle, to marking and cutting custom shaped objects.

Additional options that can be included with the LZR engraving machine includes: high precision rotating axis system for rings and bangles, electro-pneumatic feeder for metal sheets, vacuum exhaust system with filters, XY clamp for positioning pieces, and a pneumatic hatch opening system.

Code Product Name Details Availability Price Quantity
30-500-020-E
Orion Nano 20 Watt Laser Engraver
Code:
30-500-020-E
EACH

Stock Locations

  • Online:
    In Stock
  • Sydney Branch:
    Out of Stock
  • Melbourne Branch:
    Out of Stock
  • Brisbane Branch:
    In Stock
  • Adelaide Branch:
    Out of Stock
  • Perth Branch:
    Out of Stock
Call 1300 852 999 or {{QUOTELINK}} to request a quote/more info
Make an Enquiry
