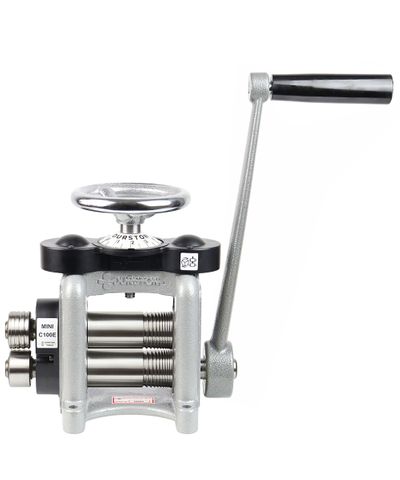

Durston Rolling Mill - Mini - C100E

Code:
16-427-000
$1,758.36 ex gst

Stock Locations

  • Online:
    In Stock
  • Sydney Branch:
    In Stock
  • Melbourne Branch:
    In Stock
  • Brisbane Branch:
    In Stock
  • Adelaide Branch:
    In Stock
  • Perth Branch:
    In Stock
Make an Enquiry

Description



The mini mills are Durston's most economical mills combining low price with a great degree of versatility for producing strip and wire at the lowest possible cost. The very fine adjustment on the roll gap allows greatest possible control over reductions made in each pass together with ease of turning. The smallest, lightest mill with a big output - widely used as the first and only machine or often as a back-up to larger mills. Extension rolls are fitted as standard.

Specifications: Mini C100

· Reference: 16-427-000

· Roll Size:100 x 45mm

· Sheet Thickness: 5mm

· Width of Sheet: 70mm

· Wire Capacity: 6.5 - 1.0mm

· Wire Grooves: 9

· Gear Ratio: Direct Drive

· Extension Rollers: 4 ‘ D’ Grooves 4, 3, 2.5 & 2mm

· Weight: 16kg

· Dimensions (Without Handle): 280 W x 170 D x 270mm H

Click here to use our Rolling Mill Selector and determine the best Rolling Mill for you
