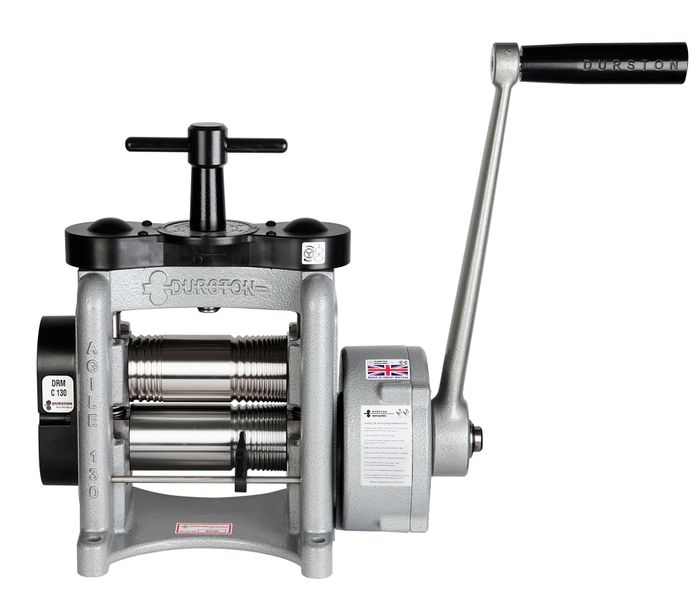

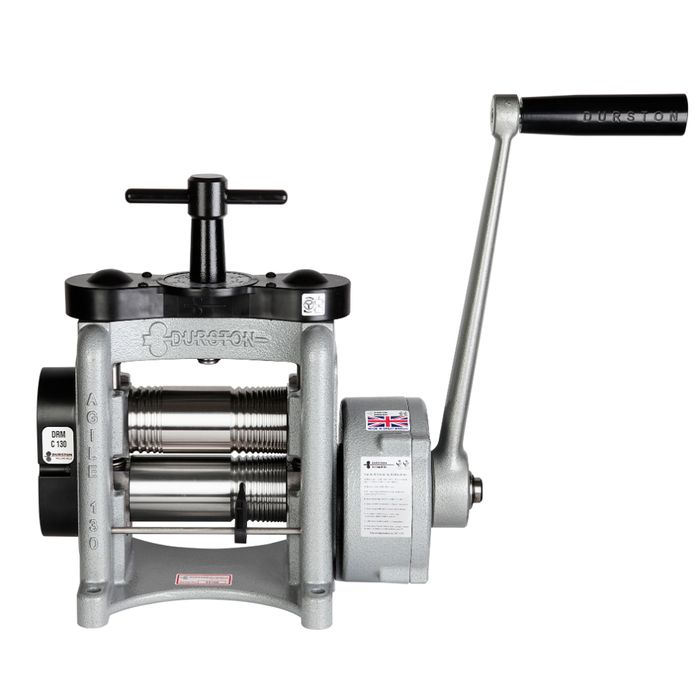

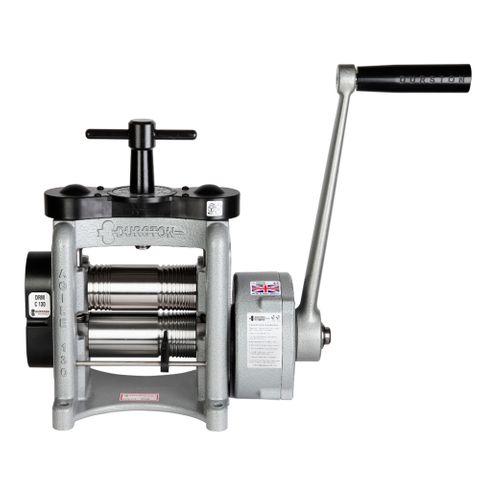

Rolling Mill - Durston Agile C130

Code:
16-443-000
$2,222.34 ex gst

Stock Locations

  • Online:
    In Stock
  • Sydney Branch:
    Out of Stock
  • Melbourne Branch:
    Out of Stock
  • Brisbane Branch:
    In Stock
  • Adelaide Branch:
    In Stock
  • Perth Branch:
    In Stock
Make an Enquiry

Description



The all new Agile 130 is a special addition to the range of Durston Rolling Mills, coming from the same stable as the DRM C130RE. It's lighter - by having thinner frames - but where the mill really needs its strength it's fully designed to support the load without any compromise on quality.

A traditional T-bar replaces the hand-wheel and you'll find 5 half-rounds as part of the main roller. There are 11 square grooves (same as the DRM C130 but included is 5 half rounds 6, 5, 4, 3 and 2mm - and still a huge 60mm of flat area. The rolls are specially induction hardened to 65 RC. The main barrel to a depth of 6mm ensuring your rolls last a life time. The Agile 130's bearing blocks are fully supported, which is important to give the best possible rolled finish. The bearings are self-lubricating and completely maintenance-free... while the beautifully formed square grooves have been specifically designed to produce the best possible rolled finish. The heavy duty five-to-one gearbox is unrivalled in the industry and makes turning so much easier. Behind the cover, you'll find two specially formed gears to make rolling even smoother. Safety features include a protective guard around the top gears

Click here to use our Rolling Mill Selector and determine the best Rolling Mill for you

Specifications

· Roll Size: 130mm x 60mm

· Sheet Capacity (Thickness): 6mm

· Width of Sheet: 60mm

· Max. Wire Capacity: 8mm

· No. of Wire Grooves: 11

· Half-Round Sizes: 2, 3, 4, 5 & 6mm

· Gear Ratio: 5:1

· Product Dimensions: 220 W x 410 L x 365 H (mm)

· Product Weight: 39.7kg
