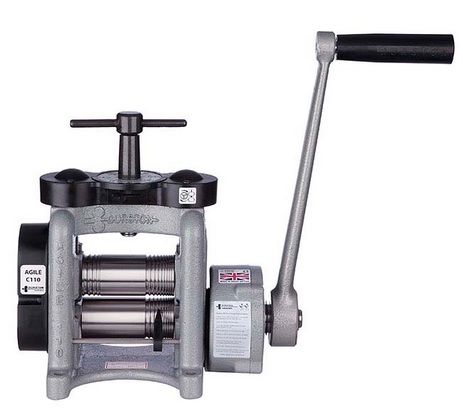

Rolling Mill - Durston Agile C110

Code:
16-443-110
$1,805.74 ex gst

Stock Locations

  • Online:
    Out of Stock
  • Sydney Branch:
    In Stock
  • Melbourne Branch:
    Out of Stock
  • Brisbane Branch:
    Out of Stock
  • Adelaide Branch:
    In Stock
  • Perth Branch:
    In Stock
Call 1300 852 999 for Availability
Make an Enquiry

Description



The Agile C110 Rolling Mill, as the name suggests this Rolling Mill is one of the most Agile and Best performing Mills in its field, developed with all the ability of the DRM Range without compromising on performance or quality, The Agile Mill Range differs by having slightly lighter frames and a new T-Bar adjustment on the top, a unique combination of wire rolling sizes give a wide range of rolling options on the Combination Models.

The Agile 110’ s bearing blocks are fully supported to give the best possible rolled finish. The bearings are self-lubricating and completely maintenance-free. Behind the cover, you’ ll find two specially constructed gears to make rolling even smoother. Safety features include a protective guard around the top gears.

The Main Rolls are 110mm wide and feature 4 half round grooves, a 50mm flat rolling area and a further 9 square rolling grooves, as with all Durston Rolling Mills, the rolls are finished to the exact same high standards, induction hardened to 64RC to give ultimate strength and will provide a lifetime of use with professional results.

Specifications

· Roll Size: 110mm x 50mm

· Sheet Capacity (Thickness): 5.5mm

· Wire Capacity: 7mm to 1mm

· No. of Wire Grooves: 9

· Gear Ratio: 4:1

· Half Round Sizes: 5, 4, 3, 2mm

· Extension Rollers: N/A

· Dimensions: 345 W x 200 D x 320 H (mm)

· Weight: 26kg

Click here to use our Rolling Mill Selector and determine the best Rolling Mill for you
